Gate Opener Repair, Replacement and Setup
The opener, or operator, is the motor, gearbox and control board that moves the gate, and the access devices are how people tell it to: remotes, keypads, intercoms and the sensors buried in the drive. Opener replacement is one of the jobs we are called for most. Just as often, the fault is a single part, a setting, or a gate that has started to drag and is wearing the motor out.
Operator Types We Work On
- Slide operators that drive a gear rack or chain along a sliding gate

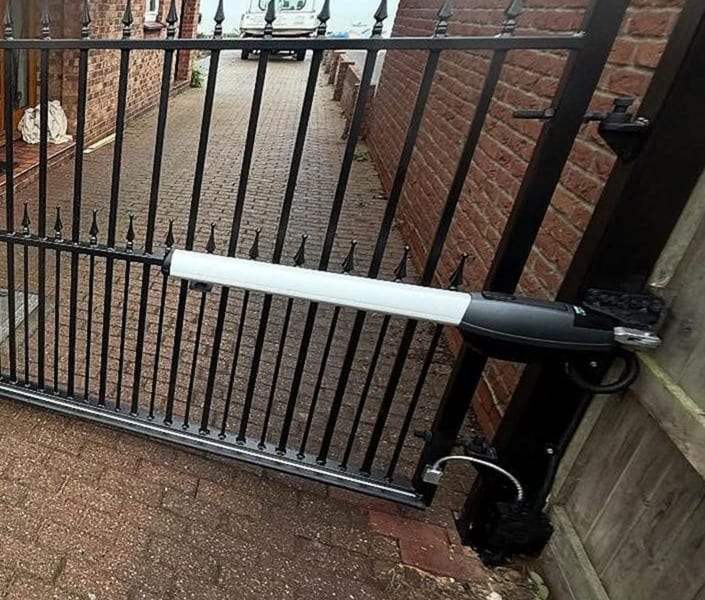

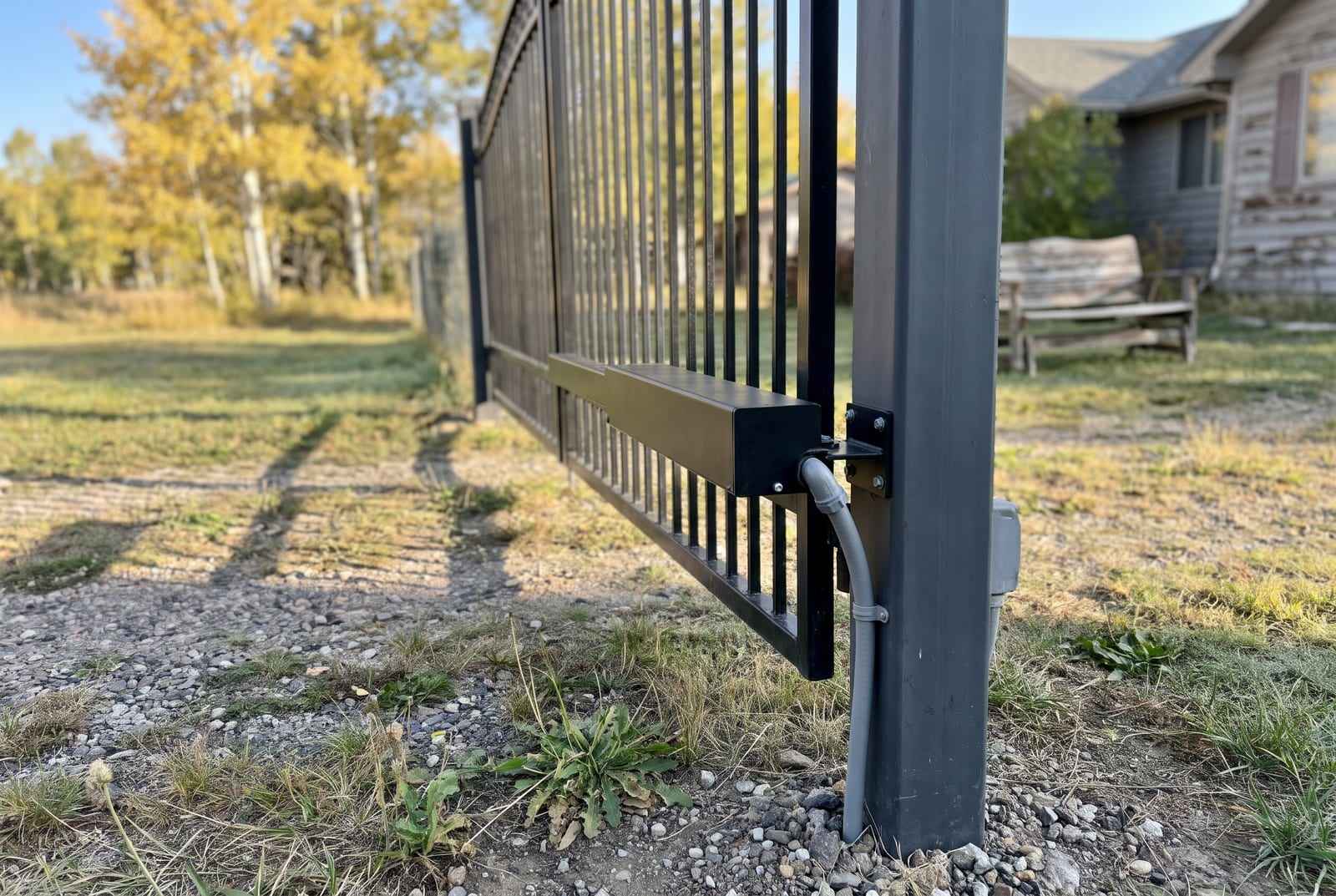

- Swing operators: articulated or ram-style arms between the post and the gate
- Underground operators set in a box below the hinge, out of sight
- Barrier-arm operators for shared entrances and small commercial lots
- Solar-powered operators charging a battery from a panel, and mains-powered operators on a household or commercial circuit, most with a battery backup
Opener Symptoms and What They Point To
More columns to the right: swipe.
| Symptom | Likely component | Service needed |
|---|---|---|
| No sound, no lights | Power supply, breaker, fuse, transformer or control board | Power check and board diagnosis |
| Hums but does not move | Capacitor, seized gearbox, or the manual release left engaged | Motor and gearbox repair |
| Opens partway, then stops | Force or limit settings, a dragging gate, a weak battery | Adjustment, battery, or gate repair first |
| Stops and reverses | Photo eye out of line, safety edge, obstruction sensing | Safety device service and testing |
| Slow travel on cold mornings | Battery losing capacity, thick grease, stiff hinges or rollers | Battery test or replacement, lubrication |
| Grinding or clicking | Worn gears, slipping rack or chain, loose mounting | Gearbox, rack or mount repair |
| Runs, but the gate does not move | Stripped gear, sheared pin, disconnected arm | Drive train repair |
Access Devices
More columns to the right: swipe.
| Device | Used for | Common issues |
|---|---|---|
| Remote controls | Opening from the vehicle or the house | Weak batteries, lost codes, short range from a failing receiver or antenna |
| Keypads | Entry by code for family, visitors and deliveries | Worn or weather-damaged buttons, chewed or corroded wiring, codes lost after a power event |
| Intercom or call box | Visitors calling the house or office to be let in | No audio, a dead line after a phone or network change, a failed relay to the opener |
| Loop detectors | Automatic exit and safety: a wire loop in the drive senses a vehicle | A cut or cracked loop, a detector out of tune, the gate opening or holding by itself |
Cold Batteries and Short Winter Days
Batteries lose capacity in the cold. A backup battery that ran the gate through an outage in June may not manage it on a January morning in Loveland, and a battery near the end of its life often shows it first as slow travel on cold days.
Solar operators have a second problem in winter: shorter days and a low sun mean less charge, and snow on the panel means none at all. A panel that keeps up in summer can fall behind by December, especially where trees or a building shade it. Clearing the panel, checking its angle and testing the battery in the fall keep a solar gate running through the dark months.
Remotes and Power Outages
Why has the remote’s range gotten shorter, and can remotes be reprogrammed?
Short range usually comes from a weak battery in the remote, a receiver antenna that has been knocked loose or shaded by metal, or a receiver starting to fail. Remotes can be reprogrammed to the receiver, and lost or extra remotes can be added or removed, which is worth doing when a remote goes missing.
What happens to the gate during a power outage?
With a working battery backup, most operators keep opening and closing for a number of cycles on battery alone; some are set to open and stay open when the power fails. Without a backup, or once the battery runs down, the gate stays where it is until it is opened by hand with the manual release, as the operator’s manual describes. Before we call a job finished, we cut the power to make sure the battery backup still opens the gate.
Get the Opener Looked At
Call or send the request form with the operator’s make if you know it and what the gate does. Photos of the opener and its control box help.
